Lippert Ground Control 3.0 electric leveling systems are standard equipment across modern fifth-wheels and travel trailers. When an operational fault occurs—whether triggered by a low-voltage event, an uneven campsite, or an unexpected sensor discrepancy—the system locks out automatic functions and displays an error code on the exterior or interior touchpad.

Restoring full functionality requires a precise reset sequence, error clearance, and often a Zero Point recalibration to ensure your RV returns to true level every time you press auto-level.


Understanding the Lippert Ground Control 3.0 Architecture

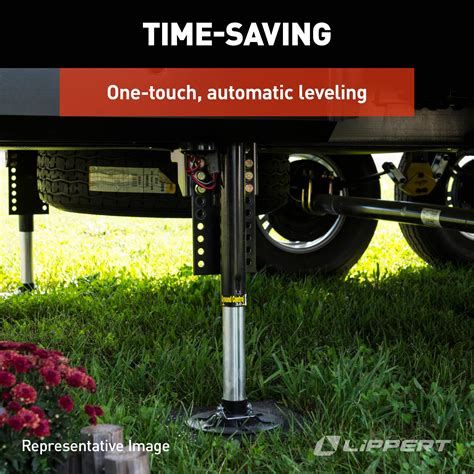

The Ground Control 3.0 system relies on integrated Hall Effect sensors inside dual-motor front landing gear jacks and electric rear jacks. These sensors communicate directly with a central controller, sending rotational pulse counts back to the brain to monitor extension distance, motor speed, and amperage draw.

The system relies entirely on a steady 12-volt direct current (DC) power supply. If your house battery bank drops below 12.0 volts under load, the controller loses pulse synchronization, leading to communication errors, false out-of-stroke readings, and total touchpad lockouts. Understanding whether your issue is electrical, mechanical, or sensory determines the correct reset procedure.

Preliminary Diagnostics: Before You Perform a Reset

Executing a system reset without verifying basic mechanical and electrical parameters often leads to recurring error codes within seconds. Inspect the following critical factors before touching the control pad:



  • DC Voltage Under Load: Measure battery voltage at the battery terminals and directly at the controller board using a digital multimeter. The system requires at least 12.7V static and must not dip below 12.0V while jacks are moving. If voltage drops significantly, plug into 30A or 50A shore power to allow your converter to maintain stable voltage.
  • Ground Wire Integrity: Inspect the heavy-gauge ground wire connecting the controller to the RV chassis frame. Corrosion, paint beneath the grounding lug, or loose self-tapping screws cause instantaneous voltage sags that confuse Hall Effect sensors.
  • Mechanical Obstructions and Stroke Limits: Confirm that no jack leg is physically bound, bent, or resting on unstable, shifting ground. Verify that pins in drop-legs are fully seated and cotter pins are intact.
  • Jack Extension Safety Margin: Ground Control 3.0 jacks have an operational stroke limit of roughly 12.5 inches. If a jack extends past this physical limit without sensing firm resistance, it logs an Out of Stroke fault. Ensure you have blocking or leveling pads under the feet on uneven terrain.

Lippert Ground Control 5th Wheel 6-Point Level Controller 2021018951 ...

Lippert Ground Control 5th Wheel 6-Point Level Controller 2021018951 ...

Step-by-Step Lippert Ground Control 3.0 Error Reset Procedure

When the LCD interface flashes an error (such as "LF Jack Error," "RF Jack Error," "LR Jack Error," or "RR Jack Error"), the controller halts all automated movement until the fault is manually acknowledged and cleared.

Operational Safety Warning Ensure your tow vehicle is unhitched and clear of the kingpin or hitch ball before clearing jack faults. Keep hands, feet, and obstacles clear of all landing gear assemblies during manual retraction.

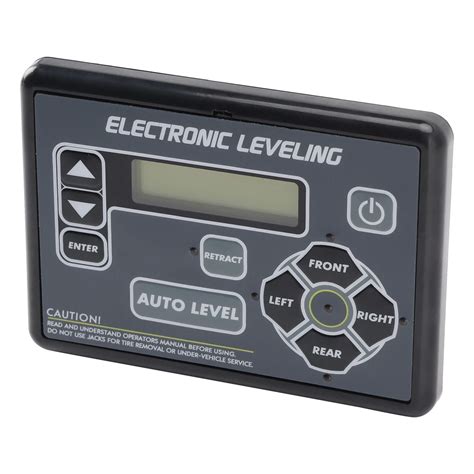

1. Clear the Active Error on the Touchpad



  1. Inspect the LCD display to identify which jack caused the failure (for example, "LR Jack").
  2. Press the ENTER button on the touchpad. In many minor sensor timeout scenarios, pressing ENTER clears the visual alert and displays "Ready."
  3. If the error refuses to clear or reappears immediately, the jack requires manual extension and retraction to synchronize its Hall Effect sensor count.


2. Manual Jack Sensor Resynchronization Sequence

If pressing enter does not clear the fault, the internal pulse counter must be reset through full travel movement:



  1. Press the FRONT, REAR, LEFT, or RIGHT buttons to enter manual mode.
  2. Extend all jacks at least 6 inches out from their fully retracted positions. Ensure drop-legs have sufficient clearance so the mechanical foot pad pushes against stable ground or jack pads.
  3. Once all four jacks (or six jacks on heavy commercial fifth-wheel chassis) are extended past 6 inches, press and hold the RETRACT button.
  4. While holding RETRACT, press the REAR button until all rear and middle jacks fully retract into their mounting tubes.
  5. Next, hold RETRACT and press the FRONT button until the front landing gear fully retracts and the motors reach their mechanical amperage limit (the controller detects the high-amp stop).
  6. Once all jacks are fully retracted against the chassis stops, the controller recalculates the zero-pulse reference point. The touchpad screen should now display "Ready - Jacks: Retracted."

How to Set and Reset the Zero Point Calibration

The "Zero Point" is the programmed baseline position that the controller remembers as perfectly level. If your RV auto-levels but remains noticeably tilted, or if you had to replace a controller or rear leveling jack, you must recalibrate the Zero Point.



Step 1: Manually Level the RV



  1. Turn off the Ground Control 3.0 touchpad.
  2. Place a reliable 2-foot or 4-foot carpenter's level inside the RV. The best measuring points are on the center floor above the axle cluster and inside the freezer compartment.
  3. Turn the touchpad on and enter Manual Mode.
  4. Use the directional buttons (FRONT, REAR, LEFT, RIGHT) to adjust the trailer until the spirit bubble indicates dead level on both the front-to-back and side-to-side axes.
  5. Verify that your entry door swings neither open nor shut when released half-way.


Step 2: Access the Hidden Calibration Sub-Menu

With the RV perfectly positioned, program this orientation into the memory:



  1. Turn the touchpad OFF by pressing the power button.
  2. Press the FRONT button five (5) times consecutively.
  3. Immediately press the REAR button five (5) times consecutively.
  4. The LCD screen will flash, chime, and display: "Zero Point Calibration - Press ENTER to Set" (or on older firmware variations, "Zero Point: Enter to Set, Power to Exit").
  5. Press the ENTER button once.
  6. The screen will read "Please Wait," followed by a confirmation beep and "Zero Point Set Successfully."
  7. The system turns off or returns to the home screen. Your new level reference is saved in non-volatile memory.

Ground Control 3.0 System Technical Specifications and Operating Limits

Understanding the core operating specifications prevents overload failures and motor burnout:



Technical Parameter Specification / Threshold Operational Consideration
Minimum DC System Voltage 12.0 VDC (Under Full Load) Controller triggers low-voltage lockout below 11.8V
Recommended Battery Reserve Group 27 / 31 AGM or 100Ah+ LiFePO4 Standard lead-acid drop-in batteries often drop voltage too fast
Jack Leg Working Stroke 12.5 Inches Exceeding this triggers an immediate "Out of Stroke" error
Main System Inline Fuse/Breaker 50A to 80A Resettable Breaker Mounted near the battery compartment or hydraulic/electric busbar
Front Landing Gear Capacity 5,000 lbs per leg Hall Effect monitored; synchronized in pairs
Rear Jack Assembly Capacity 3,500 lbs to 4,000 lbs per leg Driven by high-torque worm gears; amperage-sensing cutoff
Sensor Pulse Frequency Variable via Hall Effect Ring Disconnected pulse lines prompt "Sensor Wire Error"

Troubleshooting Common Error Codes and Diagnostic Failures

When standard resets do not restore functionality, check the underlying conditions causing the error codes listed below:



Out of Stroke



  • Condition: A jack has extended its full stroke distance without the sensor detecting the leveling point.
  • Remedy: Retract the jacks fully. Place dense wood blocks or commercial leveling pads beneath the low-side jacks to reduce the travel distance required to level the rig. Never stack blocks higher than the width of the block base.


Low Voltage Fault



  • Condition: System voltage drops beneath 11.8 volts while engaging the high-torque electric motors.
  • Remedy: Test individual battery cell gravity or voltage. Check the inline 50A/80A thermal breaker for weak internal contact resistance. Connect the RV to shore power or run the tow vehicle while plugged into the 7-way harness to bolster the DC bus.


Hall Effect Sensor / Jack Wiring Fault



  • Condition: Display shows "Bad Jack Wiring" or specific jack operational faults.
  • Remedy: Trace the harness from the affected jack to the central brain. Inspect the small 3-pin Deutsch or Molex style sensor plug. Look for pulled pins, green copper corrosion, or broken zip-ties that allowed wire friction against the trailer frame.

Comparison: Ground Control 3.0 vs. Hydraulic Leveling Systems

Lippert manufactures both the electric Ground Control 3.0 and hydraulic leveling systems (such as Lippert Level Up). Understanding these mechanical distinctions helps you diagnose system-specific issues:



Feature / Operational Demand Ground Control 3.0 (Electric) Lippert Level Up (Hydraulic)
Primary Power Medium Direct 12V Electric Motor per Jack 12V Hydraulic Pump, Fluid Reservoirs, & Valves
Stroke Monitoring Hall Effect Pulses on Motor Shaft Pressure Switches and External Level Transducers
Cold Weather Performance Reliable; no hydraulic fluid thickening Requires anti-stiction additives to prevent seal chatter
Mechanical Weight Significantly lighter; modular wiring Heavy pump assembly, manifold, and hydraulic hoses
Manual Override Method 5/16" Hex socket or 3/8" ratchet on motor end Allen wrench valve override + drill on pump coupler
Common Failure Cause Voltage drop, sensor wire damage, drop-pin shear Blown hydraulic hoses, valve leakage, air in lines

Preventive Maintenance to Prevent System Lockouts

Frequent system resets usually point to underlying maintenance neglect. Implement these maintenance habits to keep the system running reliably:



  • Clean and Lubricate Jack Struts: Spray exposed inner jack legs with a dry silicone lubricant or PTFE spray every three months. Avoid heavy grease or WD-40, which attract road grime, sand, and grit that damage the internal wiper seals.
  • Coat Sensor Connections with Dielectric Grease: Disconnect the electrical harnesses at each jack head annually, clean away moisture, and apply non-conductive dielectric grease to preserve electrical connectivity.
  • Inspect Front Drop-Leg Pins: Check the spring-loaded lock pins on the front drop legs. If these pins bend under heavy torsional loads, they can bind inside the landing gear tube, triggering false motor over-current errors.
  • Maintain the Battery Terminal Hardware: Clean and torque battery terminals twice a year. High electrical resistance at the battery posts is the most frequent reason Ground Control 3.0 controllers drop communication.

Frequently Asked Questions



How do I clear an "Out of Stroke" error on Lippert Ground Control 3.0?

To clear an Out of Stroke error, press ENTER on the touchpad to reset the message, then select manual mode and fully retract all jacks. Place additional jack pads or sturdy wooden blocks under the offending jack footpads to reduce the required travel distance, then restart the Auto-Level sequence.

If the error persists after clearing the display, manual retraction is required. Retract the front and rear landing gear fully until the motors hit the hard internal stops; this clears the controller's internal travel register and resets stroke limits.



Why does my Ground Control 3.0 pad show "Feature Disabled"?

The "Feature Disabled" warning typically appears when an operator attempts to activate an automated function while the system safety interlocks are triggered or while the trailer is still connected to the tow vehicle.

It can also indicate that the emergency breakaway pin has been pulled, or that the controller detected battery voltage below the acceptable operational threshold. Verify your battery level, ensure the front emergency pin is firmly seated, and check that the parking brake interlock on motorhome applications is fully engaged.



What causes the front landing gear to move unevenly during auto-level?

The Ground Control 3.0 system intentionally drives the landing gear legs independently at specific points during the auto-level cycle to calculate chassis torsion and ground contact.

However, if one front leg does not move at all while the other runs continuously, inspect the Hall Effect sensor wire on the non-moving leg. If the controller loses signal feedback from one motor, it halts or limits that jack's movement to prevent severe frame twisting.



Can I manually operate my Ground Control 3.0 jacks if the battery is dead?

Yes, Ground Control 3.0 electric jacks include a manual mechanical override on the top of each motor casing.

Remove the protective rubber plug located on the top of the jack motor housing to expose the manual drive shaft. Insert a 5/16-inch or 7/16-inch hex socket attached to a cordless drill or manual ratchet wrench, then turn the shaft clockwise or counter-clockwise to raise or lower the individual jack leg. Always disconnect trailer battery power before using manual mechanical overrides to prevent unexpected motor engagement.

Conclusion: Securing Flawless Leveling Performance

A properly calibrated Lippert Ground Control 3.0 system delivers smooth, automated leveling at the touch of a button. When errors arise, systematically check your 12V DC power levels, verify your harness connections, and run through the resynchronization process before replacing costly parts. Recalibrate your Zero Point whenever you notice frame flex or uneven interior lines to protect your RV chassis and mechanical slide-outs over thousands of miles on the road.
