SAE J1939 Engine Protocol Guide: 2026 Standards, CAN Bus Architecture, And Diagnostic Troubleshooting

Modern heavy-duty vehicles, industrial machinery, marine vessels, and power-generation systems rely on a sophisticated neural network of electronic control units (ECUs) to manage performance, emissions, and safety. At the core of this electronic network is the Society of Automotive Engineers (SAE) J1939 protocol. Built on the foundation of Controller Area Network (CAN) technology, the SAE J1939 engine interface acts as the universal standard that governs how the Engine Control Module (ECM) communicates critical operating data to transmissions, braking systems, instrument clusters, and telematics gateways.

As fleet electrification, hybrid powertrains, and high-bandwidth telemetry demand more data than ever before, understanding the nuances of the J1939 standard is critical for design engineers, systems integrators, and heavy-duty diagnostic technicians. This guide provides an in-depth breakdown of the J1939 engine architecture, physical layer specifications, protocol data unit structures, and systematic troubleshooting methodologies.

Deciphering the SAE J1939 Physical and Data Link Layers

The SAE J1939 standard is structured according to the Open Systems Interconnection (OSI) model, specifically focusing on the physical, data link, network, and application layers.

The Physical Layer (SAE J1939/11, J1939/15, and J1939-14)

At the physical level, a J1939 network consists of a linear bus topology constructed of shielded or unshielded twisted-pair copper wiring. The twist in the wire is mathematically designed to cancel out electromagnetic interference (EMI) from high-voltage components, alternator fields, and ignition systems.

The bus operates using differential signaling across two dedicated lines: CAN High (CAN_H) and CAN Low (CAN_L).

• Recessive State (Logical 1): When no ECU is transmitting a dominant bit, both CAN_H and CAN_L settle at a nominal voltage of approximately 2.5 Volts. The differential voltage (the difference between CAN_H and CAN_L) is 0 Volts.
• Dominant State (Logical 0): When an ECU transmits a bit, the transceiver drives CAN_H up to approximately 3.5 Volts and CAN_L down to approximately 1.5 Volts. This creates a differential voltage of approximately 2.0 Volts, signaling a logical dominant bit.

To prevent signal reflections that can corrupt data packets, the J1939 physical bus must be terminated at each physical extremity with a 120-ohm resistor, resulting in an equivalent parallel resistance of 60 ohms across the network when measured with the power off.

The Data Link Layer (SAE J1939/21)

The data link layer defines the frame format, bus arbitration, and error detection. J1939 uses the CAN 2.0B Extended Frame format, which features a 29-bit identifier rather than the standard 11-bit identifier used in passenger automotive applications. This 29-bit identifier is split into several distinct fields:

1. Priority (3 bits): Determines the arbitration priority of the message when multiple ECUs attempt to transmit simultaneously. Priority 0 is the highest (most critical); priority 7 is the lowest.
2. Reserved (1 bit): Reserved for future protocol definitions.
3. Data Page (1 bit): Expands the number of possible Parameter Group Numbers.
4. PDU Format (8 bits): Identifies the message format and determines whether the message is intended for a specific destination address or is globally broadcast to all nodes.
5. PDU Specific (8 bits): Can act as either a Destination Address (if the PDU Format is between 0 and 239) or a Group Extension (if the PDU Format is between 240 and 255).
6. Source Address (8 bits): Identifies the ECU that is transmitting the message. For instance, the primary engine controller is designated as Source Address 0 (SA 0) by default.

Decoupling the Parameter Group Number (PGN) and Suspect Parameter Number (SPN)

Understanding how data is organized within a J1939 engine frame is essential for parsing telematics or diagnosing sensor failures. The protocol uses a hierarchical structure composed of Parameter Group Numbers (PGNs) and Suspect Parameter Numbers (SPNs).

Parameter Group Numbers (PGNs)

A PGN is a unique 18-bit number assigned by the SAE that represents a specific collection of parameters grouped together within a single CAN data frame. A single PGN packet typically contains up to 8 bytes of data, though multi-packet protocols (such as the J1939 Transport Protocol) can transmit larger payloads.

For example, PGN 61444 represents Electronic Engine Controller 1 (EEC1). This specific group is broadcast continuously (typically every 10 to 50 milliseconds) by the engine ECM to provide real-time operational status to the rest of the vehicle.

Suspect Parameter Numbers (SPNs)

An SPN is a diagnostic identifier assigned to a specific physical parameter, component, or sensor within a PGN. The SPN defines the exact bit position, data length, resolution, and offset of the value within the 8-byte data field.

Using PGN 61444 as an example, the 8-byte payload is mapped to several key engine parameters:

• SPN 84 (Wheel-Based Vehicle Speed): Located within the byte structure with a defined scaling factor to convert the raw binary data into miles per hour or kilometers per hour.
• SPN 190 (Engine Speed): Located at bytes 4 and 5. It has a resolution of 0.125 RPM per bit, allowing the receiving nodes to accurately calculate the engine's exact rotational speed.
• SPN 513 (Actual Engine - Percent Torque): Located at byte 3, representing the current torque output relative to the engine's reference curve.

If a sensor fails or registers an out-of-range value, the ECM broadcasts a diagnostic code linking the specific SPN with a Failure Mode Identifier (FMI), notifying the technician of the exact failure type (such as short circuit, open loop, or erratic signal).

Technical Specifications of J1939 Variants

As engine systems have advanced, the physical and data link layers of the J1939 protocol have evolved to support higher communication speeds and more robust network configurations. The table below outlines the specific characteristics of these protocol variations.

Step-by-Step Diagnostic Troubleshooting Workflow

When a J1939 engine network experiences communication drops, erratic sensor readings, or complete vehicle shutdowns, a systematic troubleshooting approach is required to isolate the fault.

Step 1: Isolation and Power-Down Resistance Testing

Before checking voltages or connecting protocol analyzers, the physical integrity of the bus must be verified.

1. Turn the vehicle ignition switch to the complete OFF position. Wait for all ECUs to power down completely and enter sleep mode.
2. Locate the standard diagnostic connector (typically the Type 1 Black or Type 2 Green 9-pin Deutsch connector located in the cab or engine compartment).
3. Using a high-quality digital multimeter set to measure Resistance (Ohms), place the positive probe on PIN C (CAN High) and the negative probe on PIN D (CAN Low).
4. Analyze the Results:


   • 58 to 62 Ohms: The terminating resistors are healthy and properly connected in parallel.
   • 115 to 125 Ohms: One of the two 120-ohm terminating resistors is missing, disconnected, or damaged. This open-circuit condition leads to severe signal reflection, causing data corruption.
   • Below 50 Ohms: Indicates a short circuit or an extra, improperly installed third terminating resistor somewhere on the bus.
   • Near 0 Ohms: There is a direct short circuit between the CAN_H and CAN_L wires.

Step 2: Active Bus Voltage Verification

If the resistance is correct, the next step is to evaluate the transceiver voltages while the system is active.

1. Turn the vehicle ignition switch to the ON position with the engine off.
2. Set the multimeter to DC Volts. Connect the black probe to a known chassis ground or PIN A (Battery Ground) of the diagnostic connector.
3. Measure the voltage on PIN C (CAN High). It should read approximately 2.5V to 3.0V under normal idle/communication states.
4. Measure the voltage on PIN D (CAN Low). It should read approximately 2.0V to 2.5V.
5. Add the two measured voltages together. The sum must equal approximately 5.0 Volts.
6. If CAN High reads close to 5 Volts and CAN Low is near 0 Volts, look for a short-to-power or short-to-ground along the wiring harness.

Step 3: Diagnostic Trouble Code (DTC) Extraction via J1939/73

When communication is established, J1939/73 diagnostic messages are used to retrieve faults.

Diagnostic Message Type 1 (DM1) Advisory

The DM1 message contains the active diagnostic codes currently being flagged by the Engine Control Module. These codes are structured using the SPN, FMI, and Occurrence Count format. Ensure your diagnostics tool is explicitly configured to read DM1 broadcasts, as some controllers will not log these faults in non-volatile memory if they are highly transient.

Look for common Failure Mode Identifiers that pinpoint physical issues:

• FMI 3: Voltage Above Normal (indicating a short circuit to power).
• FMI 4: Voltage Below Normal (indicating a short circuit to ground).
• FMI 9: Abnormal Update Rate (indicating the ECM has lost communication with a specific node on the bus, pointing to a physical break in the stub line or an ECU power loss).

The Evolution of J1939 FD and Cybersecurity Standards

Modern commercial transportation and heavy machinery landscapes demand massive bandwidth. Advanced emissions sensors, high-definition camera integration, and automated driving controls have pushed classic 250 kbps and 500 kbps J1939 networks to their absolute physical bandwidth limits.

To address this bottleneck, the industry has transitioned toward SAE J1939-16 (J1939 FD). Utilizing CAN FD (Flexible Data-rate) technology, J1939 FD increases the maximum data payload of a single CAN frame from 8 bytes up to 64 bytes. Furthermore, while the arbitration phase of the frame remains at standard speeds to maintain network timing, the data phase is accelerated up to 5 Mbps. This drastically reduces bus load issues and allows the engine ECM to transmit higher-resolution operational telemetry in real time.

Classic J1939 Frame (8-Byte Payload Max, Fixed Bitrate) | Arbitration (250/500 kbps) | Data Field (Max 8 Bytes at 250/500 kbps) | J1939 FD Frame (Up to 64-Byte Payload, Dual Bitrate) | Arbitration (500 kbps) | Data Field (Max 64 Bytes accelerated up to 5 Mbps) |

Concurrently, heavy vehicle cybersecurity has become a critical engineering focus under the ISO 21434 standard. Because traditional CAN bus networks feature no native encryption or sender-authentication mechanisms, they are highly vulnerable to frame-spoofing and unauthorized injection attacks via telematics gateways.

Modern engine systems employ Secure Onboard Communication (SecOC) frameworks within the J1939 application layer. SecOC appends a Message Authentication Code (MAC) and a fresh freshness counter to critical engine messages (such as throttle control or torque limits), verifying the authenticity of the transmitting ECU and protecting the machine's physical safety systems from external cyber threats.

Strategic Engineering Advantages: Standardized J1939 vs. Proprietary Protocols

Implementing a standardized SAE J1939 communication stack within an engine control platform offers major structural advantages over utilizing proprietary CAN protocols, though there are specific engineering trade-offs to consider.

Standardized SAE J1939 Implementation

• Pros:


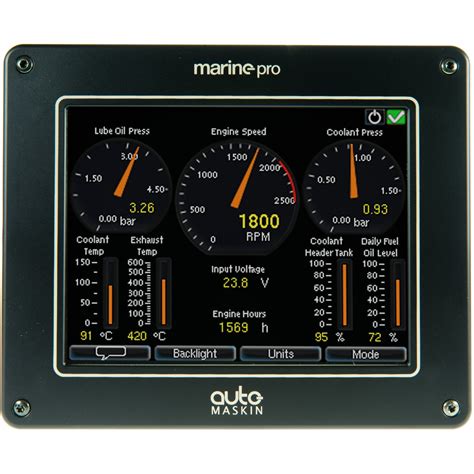

  • Plug-and-Play Interoperability: Off-the-shelf instrument clusters, third-party telematics devices, and fleet management modules can communicate with the engine ECM immediately without custom software programming.
  • Simplified Diagnostic Infrastructure: Technicians can use universal SAE-compliant scan tools to decode engine fault codes, perform diagnostic tests, and view live parameters, reducing tooling costs.
  • Regulatory Compliance: Meets standard OBD (On-Board Diagnostics) compliance requirements for medium- and heavy-duty vehicles, facilitating streamlined emissions and safety certification.
• Cons:


  • Predefined Data Structures: Limited flexibility in customizing message priorities or structuring custom parameters without utilizing designated "Proprietary PGN" blocks.
  • Known Vulnerabilities: Since PGN assignments are public information, unauthorized access to the bus allows attackers to easily interpret and manipulate engine data packets if security layers are not added.

Proprietary CAN Protocols

• Pros:


  • Tailored Bandwidth Allocation: Complete control over message framing, packet size, and bitrates, allowing developers to optimize the network specifically for specialized machine architectures.
  • Enhanced Intellectual Property Protection: Obfuscated message structures make third-party reverse engineering and unauthorized component cloning highly difficult.
• Cons:


  • High Development Costs: Requires custom software and database mapping (such as DBC file development) for every integrated system component.
  • Vendor Lock-in: Third-party integration is highly complex, often requiring expensive proprietary gateway modules to convert data signals for end-users.

Frequently Asked Questions

What is the standard source address of the main engine controller in an SAE J1939 network?

The primary Engine Control Module is assigned Source Address 0 (SA 0) by default in an SAE J1939 network.

This standardized addressing ensures that any other node on the network (such as the transmission controller at SA 3 or the instrument cluster at SA 23) knows exactly which node to listen to for critical engine speed, oil pressure, and cooling system status updates. In dual-engine installations or hybrid power units, a secondary engine controller is typically assigned to Source Address 1 (SA 1).

How do you read active fault codes on a J1939 engine?

Active diagnostic fault codes are broadcast by the engine control module using Diagnostic Message 1 (DM1) packets.

These packets contain a 4-byte block consisting of the Suspect Parameter Number (SPN), the Failure Mode Identifier (FMI), and the Occurrence Count (OC). To read them, a technician connects a compatible diagnostic scanner to the vehicle's Deutsch connector, where the software intercepts the DM1 message and translates the raw values into human-readable descriptions of the active system fault.

Why does a J1939 engine network require two 120-ohm terminating resistors?

The terminating resistors are designed to match the characteristic impedance of the twisted-pair cable, preventing signal reflections from bouncing back along the bus and corrupting data.

Without these resistors, electrical signals sent by transceivers hit the physical end of the wiring harness and reflect backward, causing destructive interference that manifests as high CAN error rates, packet loss, or complete communication blackouts. Placing a 120-ohm resistor at each physical end of the main backbone creates a parallel circuit with a net resistance of 60 ohms, stabilizing the differential voltage signal.

What is the main difference between J1939 and standard passenger-car OBD2 CAN?

SAE J1939 is an open, standardized application-layer protocol designed specifically for heavy-duty commercial networks, whereas passenger-car OBD2 is a regulatory diagnostic access standard overlaying a highly proprietary manufacturer CAN network.

While passenger-car networks use private, proprietary CAN structures for inter-ECU communication and only use standardized OBD2 protocols when a scan tool requests emission-related data, J1939-equipped commercial vehicles use open, standardized messages (PGNs) for both vehicle operation and active diagnostics continuously. Additionally, J1939 utilizes 29-bit identifiers, whereas standard passenger vehicle CAN bus networks typically utilize 11-bit identifiers.
